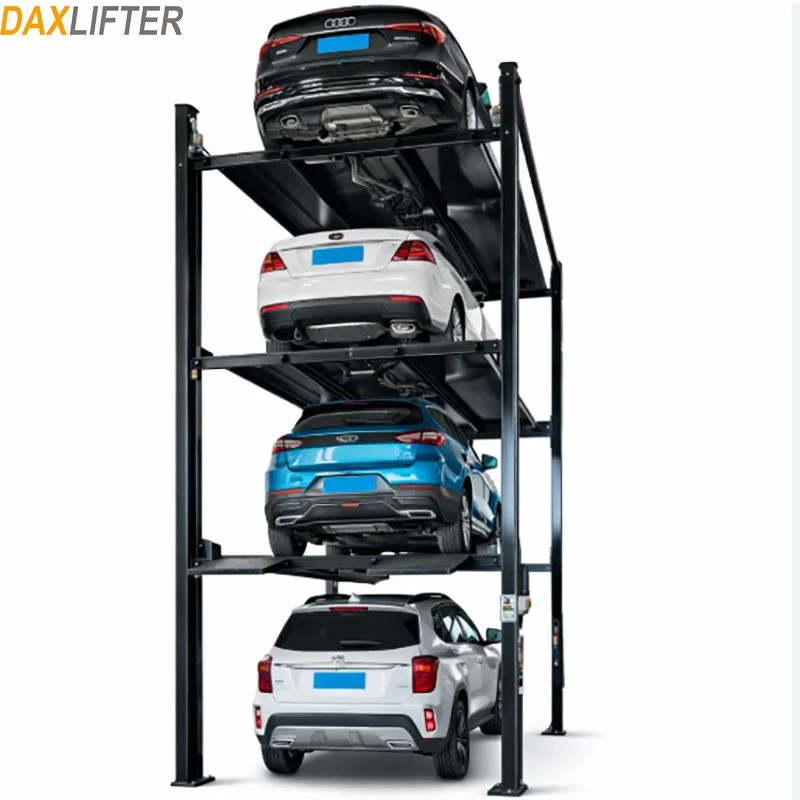

DAXLIFTER FPL-4 2518E 4 Post 4 Level Car Parking Lift
Our DAXLIFTER FPL-4 2518E four post 4 level car parking lift provides 4 parking spots, with load capacity of 2500kg on 2F, 2000kg on 3F and 2000kg on 4F. Each floor height is 1850mm for 1F, 1600mm for 2F and 1600mm for 3F. This multi-stack parking system adopts hydraulic cylinder & steel rope lifting structure, controlled by push buttons with electric and automatic operation modes. It is fitted with a 3kw motor, 60s lifting speed and supports 100-480v power supply, all metal frames with power coated surface treatment for anti-rust and long service life.
This 4 post quadruple parking stacker is widely used for residential parking, commercial garage, auto shop and private parking projects. Compared with traditional parking equipment, our 4-level car storage lift maximizes limited ground space to park 4 vehicles on one single unit, which is an ideal space-saving solution for property owners, parking contractors and auto dealers.
Main Features of 4 Level Parking Stacker
- 4 parking spots on one 4-post frame
- Hydraulic cylinder plus steel rope lifting mechanism
- Push button control, electric & automatic operation
- 3kw driving motor, 60s lifting time
- Wide voltage 100-480V for global projects
- Power coated steel for corrosion resistance
- Built-in safety locks for anti-fall protection
Technical Data
| Model | FPL-4 2518E |
| Parking Spots | 4 |
| Capacity | 2F 2500kg,3F 2000kg,4F 2000kg |
| Each Floor Height | 1F 1850mm,2F 1600mm,3F 1600mm |
| Lifting Structure | Hydraulic Cylinder & Steel Rope |
| Operation | Push buttons(electric/automatic) |
| Motor | 3kw |
| Lifting Speed | 60s |
| Voltage | 100-480v |
| Surface Treatment | Power Coated |
DAXLIFTER four post parking lift features stable hydraulic lifting system, reliable steel rope safety protection, easy push button control and durable power coated steel structure. All safety mechanisms are built in to prevent falling and overload risk. The voltage range from 100v to 480v makes this parking stacker adaptable for different countries and regional power grids. The 60 seconds lifting cycle ensures fast vehicle access for daily heavy use.
Custom color and dimension adjustment are available on request. We supply full set of installation guide, operation manual and after-sales support for our 4 level car parking lifts. Contact us to get project quotation for your multi-storey parking solution.
