Vertical Two‑Post Vehicle Storage Unit

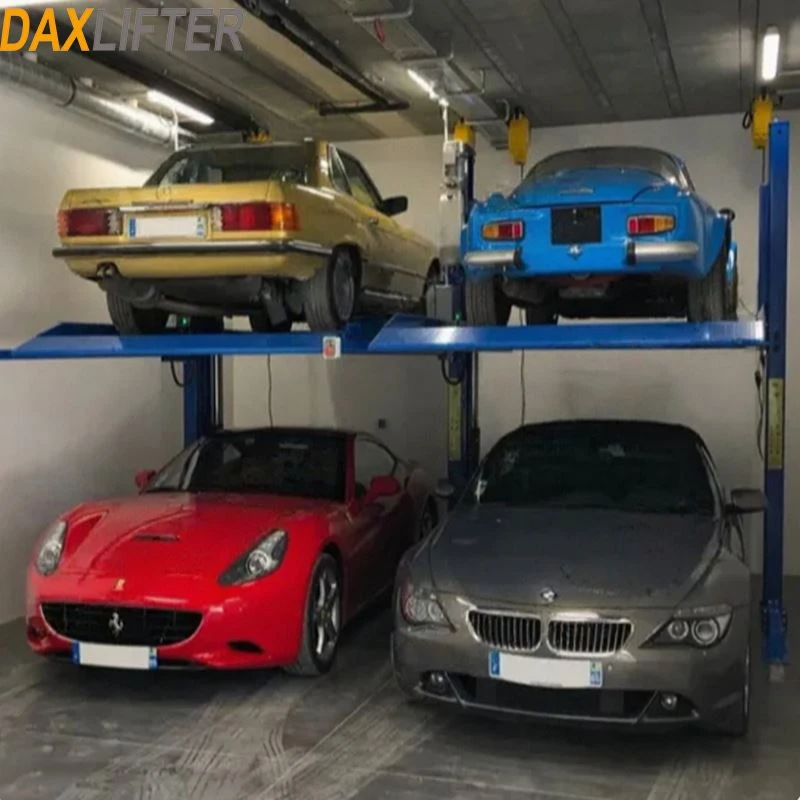

Property developers, garage renovators and parking contractors frequently face limited ground footprint when they need extra vehicle holding spots. Instead of costly building extension work, vertical stacking hardware offers a practical alternative to double parking capacity within one single bay footprint. This two‑post hydraulic storage unit is engineered to hold two automobiles stacked vertically, with three distinct load‑rating configurations to match different vehicle weights and site constraints. It works well for household private use as well as medium‑volume commercial parking deployments.
The whole assembly relies on high‑tensile steel upright columns and reinforced platform frames. Hydraulic power packs drive vertical platform movement, with uniform vertical travel set at 2100 mm for all three variants. Access width is standardized at 2100 mm so most passenger cars can drive smoothly onto deck surfaces. Human‑machine interaction is realised via simple push‑button control hardware; site‑specific power input can be adjusted to comply with local grid specifications worldwide. Column height and outer dimensions shift for each load variant, while component packaging is optimised for sea‑container shipment to keep logistics costs under control for bulk project orders.
Design & Operational Strengths
Safety considerations are embedded throughout the mechanical layout. Built‑in mechanical latches lock the platform at elevated heights to prevent uncontrolled descent when vehicles sit on upper decks. Textured ribbed deck surfaces improve tyre friction and minimise slipping risks during vehicle entry and exit. All metal surfaces receive full powder‑coated anti‑corrosion finish, extending service lifespan even in humid semi‑outdoor garage surroundings.
Modular component partitioning simplifies on‑site assembly work, and later maintenance tasks can be completed without highly specialised tooling. The integrated 2.2‑kilowatt drive unit delivers steady power output with low operating noise during lifting and lowering cycles. Container‑optimised packing allows 9 units loaded within a 20‑ft ocean container and up to 18 units inside a 40‑ft container, which brings down per‑unit freight expenditure for large‑scale project procurement.
Technical Specification Overview
| Model | TPL2321 | TPL2721 | TPL3221 |
|---|---|---|---|
| Lifting Capacity | 2300KG | 2700KG | 3200KG |
| Lifting Height | 2100 mm | 2100 mm | 2100 mm |
| Drive Through Width | 2100mm | 2100mm | 2100mm |
| Post Height | 3000 mm | 3500 mm | 3500 mm |
| Weight | 1050kg | 1150kg | 1250kg |
| Product Size | 4100*2560*3000mm | 4400*2560*3500mm | 4242*2565*3500mm |
| Package Dimension | 3800*800*800mm | 3850*1000*970mm | 3850*1000*970mm |
| Surface Finish | Powder Coating | Powder Coating | Powder Coating |
| Operation mode | Automatic (Push Button) | Automatic (Push Button) | Automatic (Push Button) |
| Rise/Drop time | 30s/20s | 30s/20s | 30s/20s |
| Motor capacity | 2.2KW | 2.2KW | 2.2KW |
| Voltage (V) | Custom made base on your local demand | ||
| Loading Qty 20'/40' | 9pcs/18pcs | ||
Project Application Scenarios
- Multi‑car private underground garage for villa households
- Parking‑capacity upgrade for high‑rise residential housing estates
- Vehicle holding zones for car retailers and maintenance workshops
- Supplementary parking infrastructure for office blocks and shopping complexes
- Retrofit projects aiming to expand capacity of existing public parking zones
