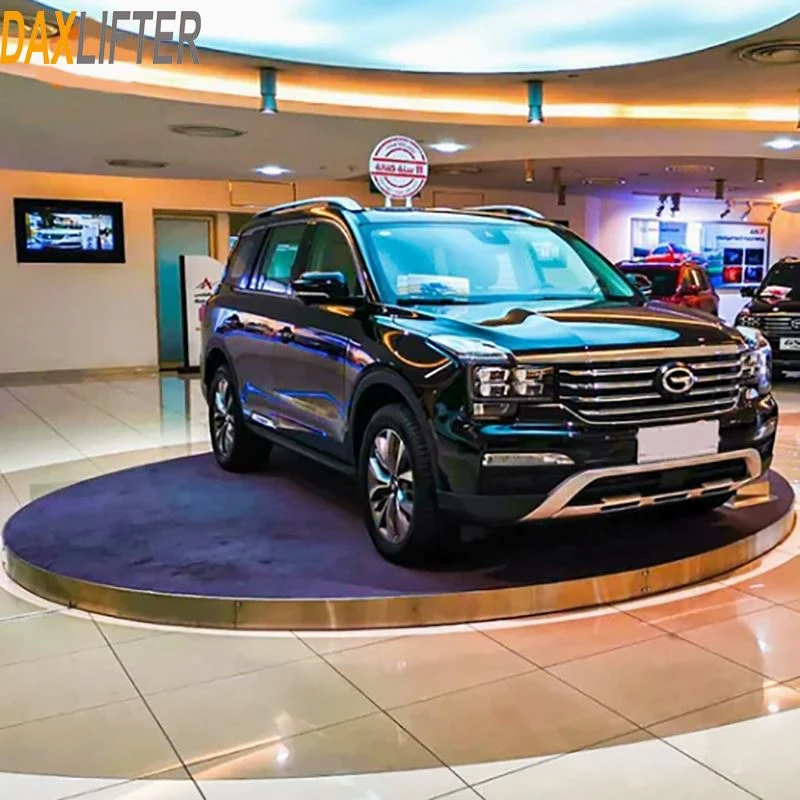

DAXLIFTER CRP Series Car Rotating Display Platform
DAXLIFTER CRP series car rotating display platform is a movable and removable vehicle turntable with 3000kg standard load capacity, available in 4000mm,5000mm,6000mm diameter options. The platform height can be 120mm,200mm or 300mm with custom service supported. It adopts variable frequency speed regulation, rotating at 0.5 to 1.5 revolutions per minute. Powered by 4*0.4kw motors, this auto rotation turntable supports multiple AC power supply including 110V,220V,230V,380V,400V, and can be operated via remote control or control panel. We provide multiple color choices such as black, grey, blue and white for car showroom, auto exhibition hall and 4S store vehicle display.
Features of Vehicle Rotating Turntable
- Removable & movable design, easy installation and relocation
- Variable frequency speed regulation, smooth rotation 0.5-1.5 rpm
- Dual control: remote control + control panel
- Multiple power options, customized voltage available
- Optional colors: black, grey, blue, white
- Custom diameter, height and loading capacity supported
Application Scenarios
This car rotating platform is ideal for 4S car dealership, automobile showroom, auto exhibition, car museum and luxury car display. It helps present the whole vehicle from all viewing angles, improving customer experience.
Technical Parameters
| Item | CRP-4030 | CRP-5030 | CRP-6030 |
| Diameter | 4000mm | 5000mm | 6000mm |
| Capacity | 3000kg (customized available) | ||
| Height | 120mm/200mm/300mm (customized available) | ||
| Mobile form | Removable and movable | ||
| Rotation period | 0.5-1.5 revolutions per minute;(Variable frequency speed regulation) | ||
| Power supply | AC 110V/220V/230V/380V/400V(customized available) | ||
| Motor power | 4*0.4kw (depend on loading capacity) | ||
| Control mode | remote control & control panel | ||
| Color | Black, Grey, Blue, White and so on | ||
DAXLIFTER manufactures high-quality auto rotating display platform for worldwide buyers. Custom solutions are welcome to meet your local project requirements. Contact us to get latest quotation.
